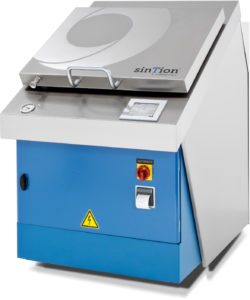

sinTion: Simple and Safe Disposal of Infectious Waste

Approved by the Robert Koch Institute (RKI) and the Austrian Society for Hygiene, Microbiology and Preventive Medicine, sinTion employs a patented process (microwave and saturated vapour technology) to disinfect and sterilise infectious material rapidly, safely, and cost-effectively. Depending on relevant local legislation, the materials are then either converted into reusable medical implements or into shreddable waste. sinTion is even able to eliminate the Corona virus and has a program for disinfecting medical needles. After being disinfected in this way, needles and syringes can be added to normal domestic waste without any concerns.

You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

More Information

Unblock content Accept required service and unblock content

Features

Highly efficient disinfection / sterilization by combination of microwaves and saturated steam
No chemical additives
No pre-shredding of waste required
Pre-evacuation phase
Drying by evacuation
High throughput (up to 210 litres of waste per hour)
Automatic printout for documentation

Safety Measures

Easy and safe operation via modern PLC and operation display
Error detection and automatic switch-off

Approvals

Robert Koch Institute (RKI), Berlin
Austrian Society for Hygiene, Microbiology and Preventive Medicine (ÖGHMP)

Relevant SDGs

Zusätzliche Informationen downloaden

sinTion Factsheet Healthcare Folder

Technical Data

Dimensions of Frame

Depth:	1120 mm
Width:	860 mm
Height:	1180 mm
Weight:	520 kg

Dimensions of Disinfection Chamber

Height:	650 mm
Diameter:	450 mm
Volume:	103 l

Connection Requirements (Power)

Power connection euro-power plug:	400 V, 50 Hz, 32 (A) (T)
Voltage:	3P + N + PE (400 V)
Maximum rate of power:	10 kW

Connection Requirements (Water)

Water supply:	3/4 “
Drain connection:	1 “

Drinking water quality, < 1° dH, min. 4.5 bar (measured at a flow rate of 5.5 l/min), max. 10 bar static pressure, maximum temperature 20 °C. A water softener and booster pump are available upon request.

Functional Data

Alternatively disinfection or sterilization:	121 – 134° C
Effectiveness:	STAAT Level III, IV; ABCD
Duration of cycle (depending on the amount of waste):	20 – 30 min
Power consumption per cycle:	~ 2,5 kWh
Number of mw-generators:	6

Environmental impacts (Global Warming Potential)

GWP per treatment cycle:	0,77 kg CO₂ eq
GWP total life cycle:	23.193 kg CO₂ eq

Do you have Questions?

Mr. Nestler and his team are happy to inform you about the treatment of medical waste and protective or single-use equipment.
