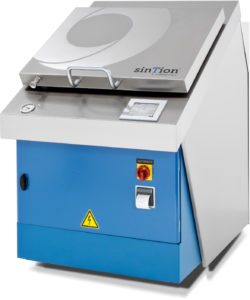

Home    sinTion Medical Waste Treatment Device

sinTion: Simple and Safe Disposal of Infectious Waste

Approved by the Robert Koch Institute (RKI) and the Austrian Society for Hygiene, Microbiology and Preventive Medicine, sinTion employs a patented process (microwave and saturated vapour technology) to disinfect and sterilise infectious material rapidly, safely, and cost-effectively. Depending on relevant local legislation, the materials are then either converted into reusable medical implements or into shreddable waste. sinTion is even able to eliminate the Corona virus and has a program for disinfecting medical needles. After being disinfected in this way, needles and syringes can be added to normal domestic waste without any concerns.

YouTube

By loading the video, you agree to YouTube's privacy policy.
Learn more

Load video

Features

  • Highly efficient disinfection / sterilization by combination of microwaves and saturated steam
  • No chemical additives
  • No pre-shredding of waste required
  • Pre-evacuation phase
  • Drying by evacuation
  • High throughput (up to 210 litres of waste per hour)
  • Automatic printout for documentation

Safety Measures

  • Easy and safe operation via modern PLC and operation display
  • Error detection and automatic switch-off

Approvals

  • Robert Koch Institute (RKI), Berlin
  • Austrian Society for Hygiene, Microbiology and Preventive Medicine (ÖGHMP)

Relevant SDGs



Zusätzliche Informationen downloaden

sinTion Factsheet Healthcare Folder



Technical Data

Dimensions of Frame

Depth:1120 mm
Width:860 mm
Height:1180 mm
Weight:520 kg

Dimensions of Disinfection Chamber

Height:650 mm
Diameter:450 mm
Volume:103 l

Connection Requirements (Power)

Power connection euro-power plug:400 V, 50 Hz, 32 (A) (T)
Voltage:3P + N + PE (400 V)
Maximum rate of power:10 kW

Connection Requirements (Water)

Water supply:3/4 “
Drain connection:1 “

Drinking water quality, < 1° dH, min. 4.5 bar (measured at a flow rate of 5.5 l/min), max. 10 bar static pressure, maximum temperature 20 °C. A water softener and booster pump are available upon request.

Functional Data

Alternatively disinfection or sterilization:121 – 134° C
Effectiveness:STAAT Level III, IV; ABCD
Duration of cycle (depending on the amount of waste):20 – 30 min
Power consumption per cycle:~ 2,5 kWh
Number of mw-generators:6

Environmental impacts (Global Warming Potential)

GWP per treatment cycle:0,77 kg CO2 eq
GWP total life cycle:23.193 kg CO2 eq

Wolfgang Nestler

Do you have Questions?

Mr. Nestler and his team are happy to inform you about the treatment of medical waste and protective or single-use equipment.



Contact us
