Home    MegaShred Medical Waste Treatment Device

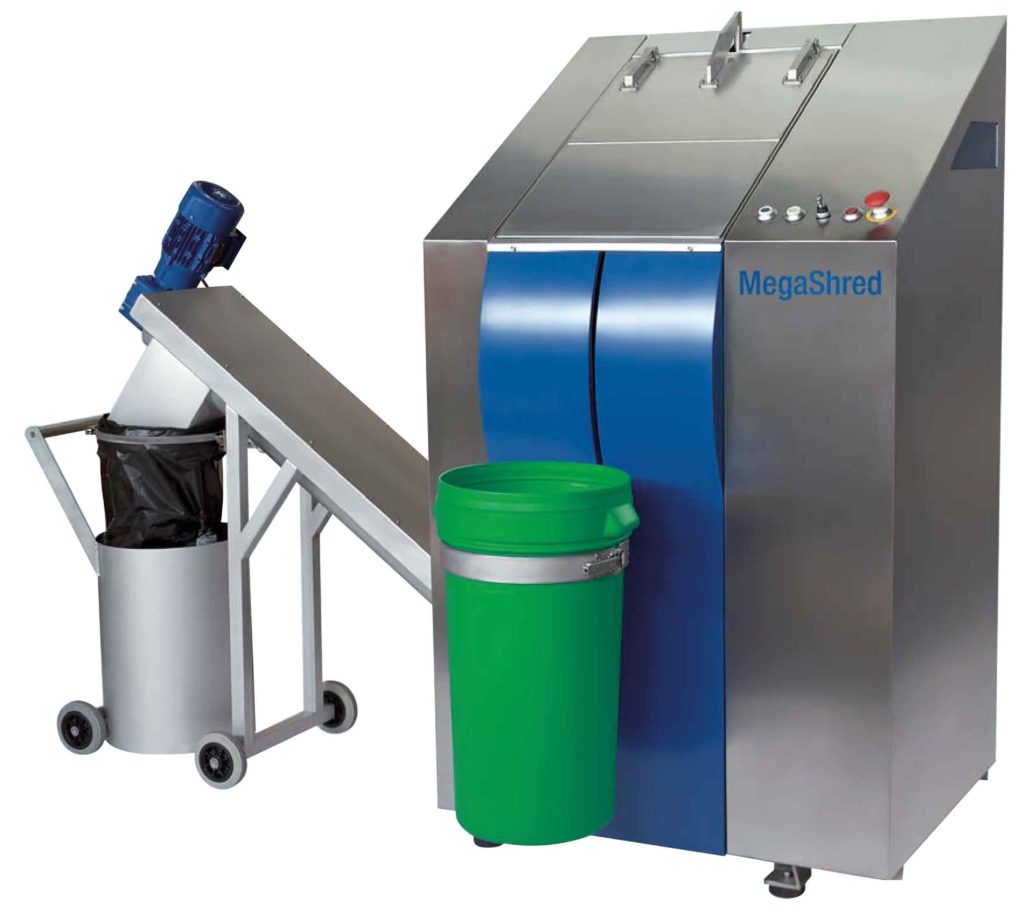

MegaShred: Simple and Affordable Disposal of Medical Wet Waste

The effective and economic solution for the hygienic disposal of liquid medical waste in 60 liter collection systems.

Features

  • Cost-saving volume reduction of liquid medical waste
  • Disposal of 60 liter waste bags
  • Lifting and emptying device
  • Separation of solid and liquid components of filled disposable systems
  • Cleaning nozzles
  • Automatic disposal of the liquid phase into the drain
  • Mechanical discharge of shredded plastic parts
  • Mechanical cleaning of device with disinfection program
  • Hardened stainless steel cutter

Equipment

  • Shredder module with PLC process control
  • Pneumatic feeding unit
  • Integrated compressed-air supply
  • Booster system for cleaning water, safe from microbial regrowth
  • Stainless steel case with smooth, easy to clean surfaces
  • Removable discharge module with cleaning system

Technical Data

Dimensions with Conveyor

Width:1050 mm
Height:1850 mm
Depth:950 mm
Weight:approx. 750 kg

Connection Requirements

Power connection:400 / 230 V PE + N
Fuse protection:25 A (slow-blow fuse)
Water connection:3/4“ > 2.5 bar
Sewer connection:DN 75

Device Data

Power consumption:max. 9200 watts
Cutter opening:450 x 450 mm
Rotor diameter:290 mm
Screw diameter:180 mm

Functional Data

Rotational speed:28 rpm
Granulate size:max. 100 mm
Throughput:up to 200 kg of liquid waste/h

Wolfgang Nestler

Do You Have Questions?

Mr. Nestler and his team are happy to help informing you about medical waste treatment or about treating protective or single-use equipment.
